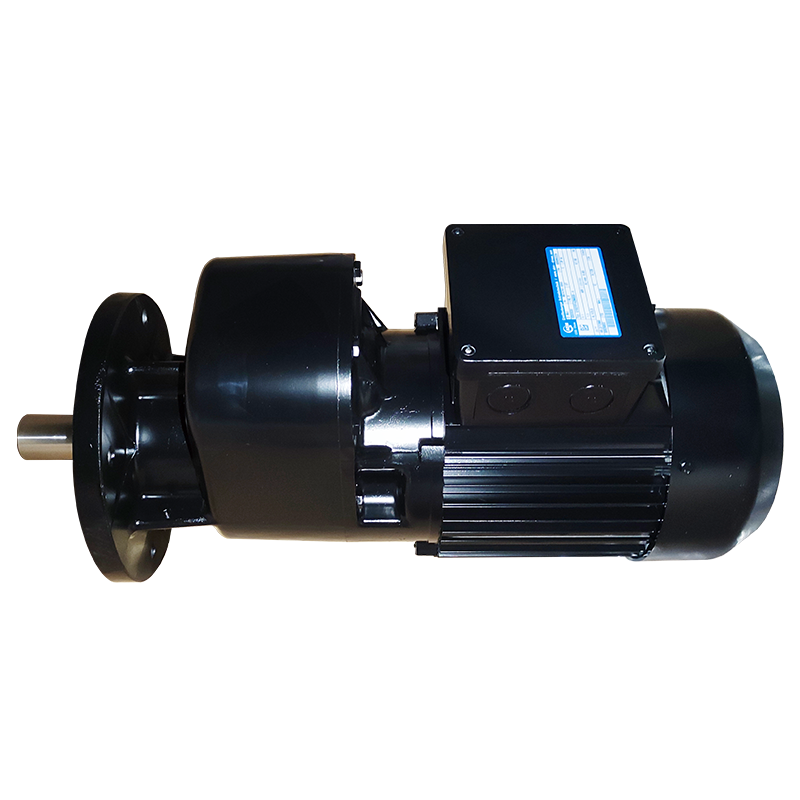

☑Motor:GERMANY NORD® AC Geared Motor /GERMANY ABM® AC Geared Motor IP55+ Insulation class:F
☑Inverter:GERMANY BOSCH REXROTH Inverter (VFD)/JAPAN NIDEC Inverter (VFD)
☑Blade :Aviation Aluminum Alloy 6063 / 6pcs
☑Certificates:CE，IEC,LVD,EMC,etc.
☑Features:Very mature product, has been recognized by markets many years.
☑Application: HEIGHT ≧ 7M
Warehouses; Farms; Indoor gyms;Fitness clubs; Stadiums ; Churches; Mosque;Railway stations:Barns; Firehouses; Dining
halls; Large supermarkets;Workshops etc.
| Model |
Rated Voltage 50~60Hz |
Rated Power |
Rated Current |
Diameter |
Max Speed |
Max Air Volume |
Coverage |
Sound Level |
Blade Qty |
N.W. |
| WYDS-B730M |
220/380V |
1500W |
3.7A |
7.32M(24ft) |
50rpm |
13100m³/min |
1200 ㎡ |
≤ 45dB（A） |
6pcs |
158kg |
| WYDS-B680M |
220/380V |
1500W |
3.7A |
6.72M(22ft) |
55rpm |
12800m³/min |
1100 ㎡ |
≤ 45dB（A） |
6pcs |
154kg |
| WYDS-B620M |
220/380V |
1500W |
3.7A |
6.12M(20ft) |
60rpm |
12200m³/min |
1000 ㎡ |
≤ 45dB（A） |
6pcs |
150kg |
| WYDS-B560M |
220/380V |
1500W |
3.7A |
5.52M(18ft) |
65rpm |
11900m³/min |
900 ㎡ |
≤ 45dB（A） |
6pcs |
146kg |
