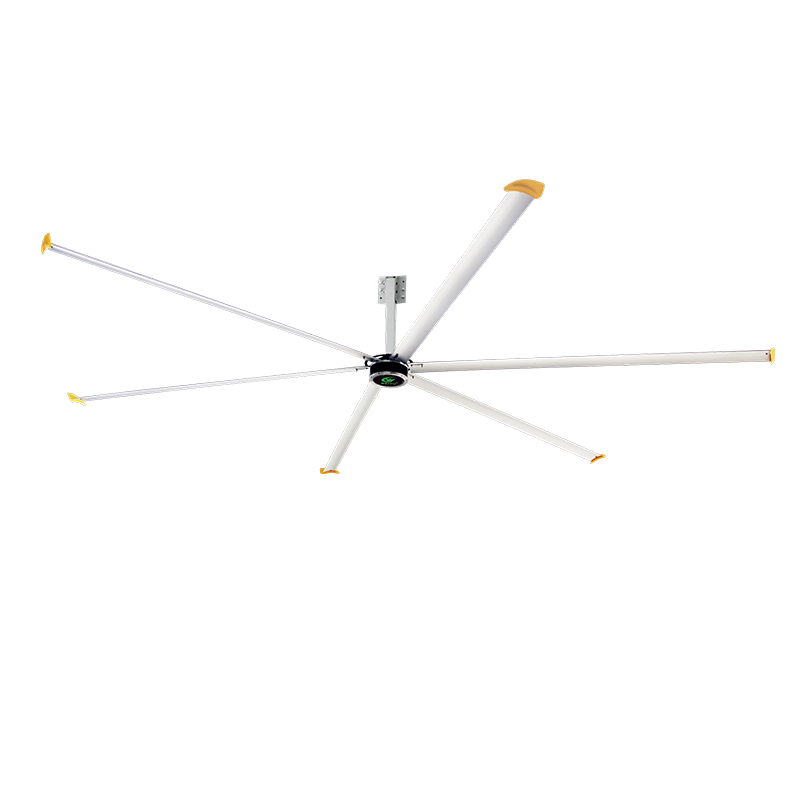

8ft-24ft with straight-line-6-bldes

The 8ft - 24ft fan with straight line 6 blades offers efficient and reliable operation. The straight line blade design ensures a stable and consistent airflow. Its large size allows for wide coverage, making it suitable for industrial and commercial applications. With its durable construction and excellent performance, it provides a dependable solution for effective ventilation and cooling in large spaces.

☑Motor:WEIYU®DC Brushless Permanent Magnet Synchronous Motor(PMSM) IP55+IE3+ Insulation Class:H

☑Inverter:WEIYU® Variable Frequency Drive(VFD)with safety protection module

☑Blade:Aviation Aluminum Alloy 6063 / 6pcs

☑Certificates: IEC,LVD,EMC,etc.

☑Features:No carbon brush;No hall;DC drive；Large torque;High energy efficiency;Low energy consumption;Lower temperature rise

☑Application:HEIGHT ≧ 7M

Model	RatedRated Voltage50~60Hz	Rated Power	Rated Current	Diameter	Max Speed	Max Air Volume	Coverag	Sound Level	Blade Qty	N.W.
WYDS-AS7320M 6B	220V/380V	1500W	3.8A	7.32M(24ft)	50rpm	14900m³/min	1200㎡	≤ 40dB（A）	6PCS	121KG
WYDS-AS6720M 6B	220V/380V	1400W	3.6A	6.72M(22ft)	55rpm	13500m³/min	1100㎡	≤ 40dB（A）	6PCS	117KG
WYDS-AS6120M 6B	220V/380V	1200W	3.1A	6.12M(20ft)	60rpm	12200m³/min	1000㎡	≤ 40dB（A）	6PCS	105KG
WYDS-AS5520M 6B	220V/380V	1000W	2.5A	5.52（18ft）	65rpm	10800m³/min	900㎡	≤ 40dB（A）	6PCS	100KG

☑Motor:WEIYU® DC Brushless Permanent Magnet Synchronous Motor(PMSM) IP55+IE3+ Insulation Class:H

☑Inverter:WEIYU® Variable Frequency Drive(VFD)with safety protectio module

☑Blade :Aviation Aluminum Alloy 6063 / 6pcs

☑Certificates:IEC,LVD,EMC,etc.

☑Features:No carbon brush；No hall；DC drive；Large torque；High energy efficiency；Low energy consumption;Lower temperature rise

☑Application:HEIGHT ≦ 7M

Warehouses; Farms; Indoor gyms;Fitness clubs; Stadiums ; Churches; Mosque;Railway stations:Barns; Firehouses; Dining

halls; Large supermarkets;Workshops etc

Model	Rated Voltage 50~60Hz	Ralted Power	Rated Current	Diameter	Max Speed	MaxAir Volume	Coverage	Sound Level	Blade QTY	N.W.
WYDS-AS4880M 6B	220V	950W	4.8A	4.88M(16ft)	70rpm	8900m³/min	770 ㎡	≤ 40dB（A）	6pcs	75kg
WYDS-AS4280M 6B	220V	950W	4.8A	4.28M(14ft	85rpm	7400m³/min	640 ㎡	≤ 40dB（A）	6pcs	67.6kg
WYDS-AS3680M 6B	220V	850W	4.3A	3.68M(12ft)	95rpm	5900m³/min	470 ㎡	≤ 40dB（A）	6pcs	63.8kg
WYDS-AS3080M 6B	220V	800W	4A	3.08M(10ft)	120rpm	5200m³/min	300 ㎡	≤ 40dB（A）	6pcs	56.8kg
WYDS-AS2480M 6B	220V	800W	4A	2.48M(8ft)	150rpm	4200m³/min	200 ㎡	≤ 40dB（A）	6pcs	53kg
